Grain Pile Measurement
Grain pile measurement is a core requirement for grain storage management. Traditional manual measurement has pain points such as low efficiency, high error rate and limited by dust environment.
The mobile SLAM laser scanning technology has achieved breakthroughs through 3D point cloud modeling, centimeter-level precision scanning, and high-protection design adapted to complex granary environments. This technology promotes the warehouse management upgrading to intelligence and digitalization, providing real-time spatial data support for food security monitoring and supply chain optimization.
Industry Pain Points
Inefficiency
Traditional single-point measurement requires manual point-by-point collection, which is time-consuming and labor-intensive, especially for large-area piles which the operation cycle is lengthy.
Insufficient Accuracy
Single-point measurement is easily affected by the slope of the pile surface and obstructions, resulting in large data errors and easily leading to measurement disputes.
Poor Environmental Adaptability
Traditional equipment is difficult to operate in complex terrain (such as mine tunnels, ship cabins) or in severe weather (high or low temperatures).
Data Is Single
It can only provide 2D data and cannot meet advanced requirements such as 3D modeling and dynamic analysis.
Advantages
-
Efficient and Accurate
The single-point acquisition efficiency is increased by 5-10 times, the scanning speed reaches 320,000-640,000 points/second, and large-scale pile data acquisition can be completed within 10 minutes.
-
Full Scenes Coverage
It supports wide operating temperature range of 35℃ to 55℃. With high protection level, it adapts to complex working conditions such as various granaries, dusty and high-temperature environments.
-
Comprehensive Data
Obtain high-density 3D point clouds, panoramic images and absolute coordinates, and support volume calculation, contour line and orthophoto generation.
-
Intelligent Management
The supporting software automatically generates reports, supports connection with third-party systems, and facilitates digital warehouse management.
Solutions and Related Products

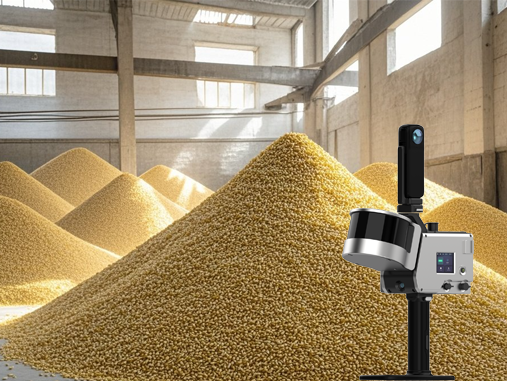

The GoSLAM mobile measurement system 3D scanner has significant advantages in pile measurement. It can improve work efficiency, measurement accuracy and data comprehensiveness of pile measurement, especially in large piles and intelligent digital material piles.
Main Advantages:
■ Real-Time Process: Once the scanning is completed, a usable point cloud can be generated without secondary processing.
■ Multi-platforms Adaptation: Supports multiple mounting methods such as handheld, backpack, extension pole, drone, track deployment, fixed deployment, etc., to flexibly handle different scenarios.

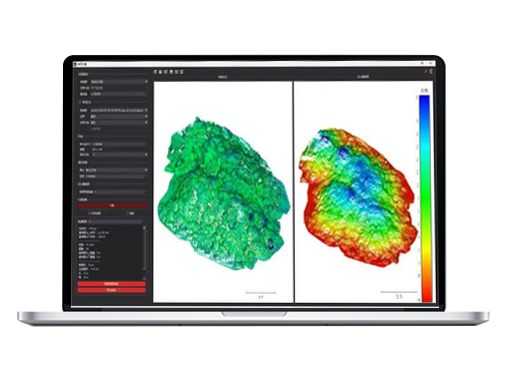

■ Intelligent Software Support: LidarWorks software provides functions such as point cloud denoising, pile extraction, and volume calculation, and can generate professional reports with one click.
■ High-precision Guarantee: Point accuracy is up to 1cm, combined with anchor point processing technology to ensure measurement stability in large-scale low-feature scenes.
Workflow
Data Collection

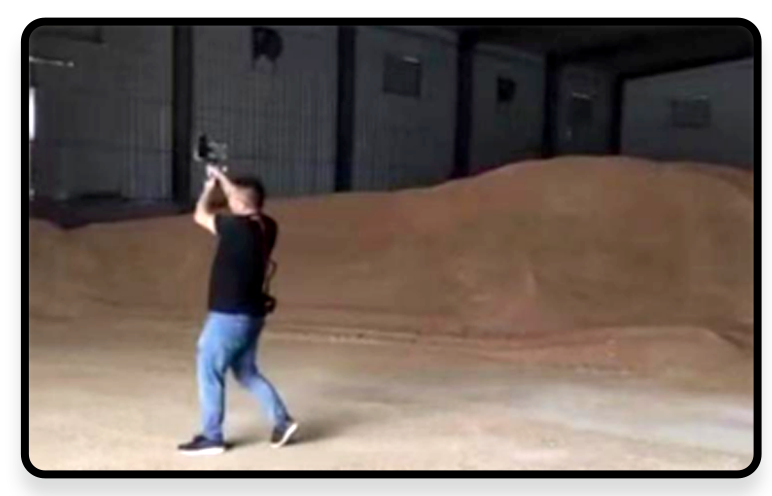

Assemble and power on the device, then use a mobile phone to remotely control the device for mobile data collection.
Data Processing

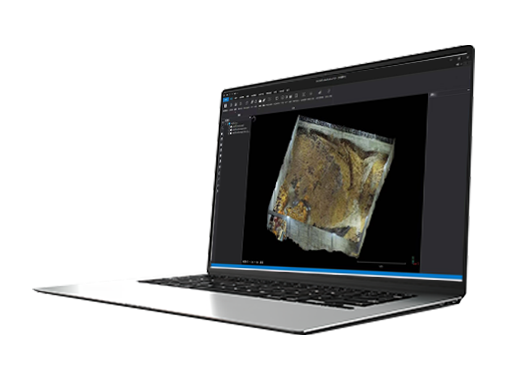

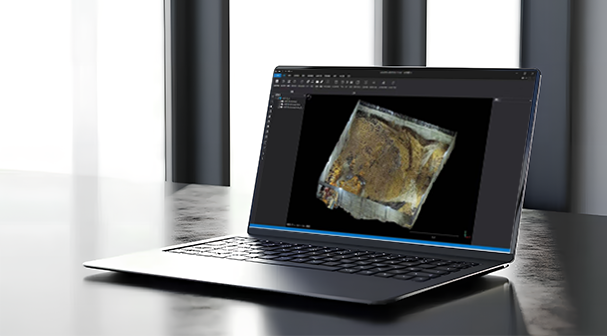

The device can be controlled to perform internal processing and automatically process data by the APP.
Result Export
Data can be exported via USB, network cable or WiFi.
